Pigment Drying System with Tray Dryer
Pigment Drying System with Tray Dryer
Systems

Pigment Drying System with Tray Dryer

Swamiraj Engineering has designed and developed cost effective system for Pigment drying which saves Energy & Valuable Time for drying the pigment, thereby reducing the overall cost for drying.

In conventional Pigment drying system, the wet cake from Filter Press cake is first collected in Trolleys and then from trolleys it is fed into Trays. These Trays are then loaded in Tray Dryer. Depending upon moisture content these Dryers will take any time from 24 Hrs to 40 Hours for Drying. To overcome this energy intense Pigment drying method, Swamiraj engineering has developed a drying system with Noodling of Pigment. Depending upon moisture content the material is dried between 6 to 10 Hours.

Enqury Now

New Pigment Drying System

The New Pigment Drying system consists of the following equipment:

  1. ☆ Belt Conveyor
  2. ☆ Pigment Noodle Maker
  3. ☆ Tray Dryer
  4. ☆ Control Panel for the system

Pigment Noodle Extruder

The Pigment Noodle Extruder Machine is used to make noodles from the wet cake received from the filter press through the Belt Conveyor. The working principle of the noodle extruder is wet cake getting pressed at a very high pressure in between an oscillating shaft & extruder plate, resulting in formation of noodles from the bottom of the extruder plate.

The oscillating shaft oscillates to and fro on the extruder plate powered by a hydraulic power pack to develop high pressure. The output noodles are collected in trays kept below the noodler. These trays are manually transferred to the Tray Dryer.

  • ☆ The volume of each tray is about 10 liters.
  • ☆ Two trays are placed below the noodler.
  • ☆ Pigment noodle extruders are available in varying capacities from 500 kg/hr to 1000 kg/hr of wet cake noodles, and are available in SS304 grade of material.

Belt Conveyor

The Belt Conveyor is placed below the Filter Press Cake. The wet cake discharged from the filter press is collected on the Belt Conveyor. The Belt Conveyor then transfers the wet cake into the Noodle Making Machine.

Tray Dryer

A Tray Dryer is an enclosed insulated chamber in which trays are placed on top of each other in trolleys. Tray Dryers are extensively used for drying the pigment wet cake / pigment noodles.

The material to be dried (noodles) is placed in the trays. Heat transfer is by circulation of hot air by electric heaters or steam in radiator coils. Blower fans are installed inside to ensure proper circulation and transfer of heat. A control panel to control the temperature and other parameters is provided outside the dryer.

These dryers are available in SS304 from inside for all contact parts and externally in MS.

Enqury Now
team

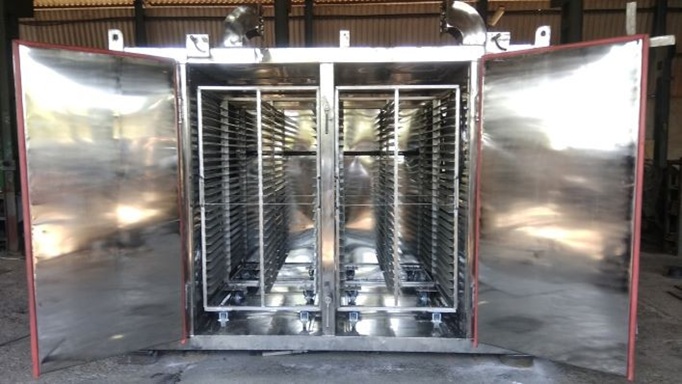

GMP Finish Tray Dryer

team

Tray Dryer

MODEL STD-24 STD-48 STD-96 STD-192
Loading Capacity 24 Trays 48 Trays 96 Trays 192 Trays
External Dimensions in mm L X B X H 1450 X 950 X 960 L X B X H 2000 X 1100 X 1950 L X B X H 3200 X 1100 X 1950 L X B X H 3200 X 2000 X 1950
No. of Doors 1 1 2 2
No. of Axial Fan 1 1 2 4
No of Motors 1 1 2 2
Motor Power 1HP, IE2, 4POLE, 3PHASE, 50HZ 1HP, IE2, 4POLE, 3PHASE, 50HZ 1HP, IE2, 4POLE, 3PHASE, 50HZ 2HP, IE2, 4POLE, 3PHASE, 50HZ
Steam Heater No. of Coils 1 2 3 3
Steam Consumption 45 LBS/Hr 60 LBS/Hr 85 LBS/Hr 115 LBS/Hr
Insulation in mm for 100°C/200°C 50/75 50/75 50/75 50/75
Type of Trolley Fixed rack Removable Removable Removable
No. of Trolleys Not Applicable 1 2 4
Tray Size 810 x 405 x 32 810 x 405 x 32 810 x 405 x 32 810 x 405 x 32
Trolley Dimension Not Applicable 850 x 960 x 1800 850 x 960 x 1800 850 x 960 x 1800

Control Panel

The Control Panel is provided to synchronise the operation of Belt conveyor & Noodle Making Machine & Manual feeding of Tray in Tray dryer.
